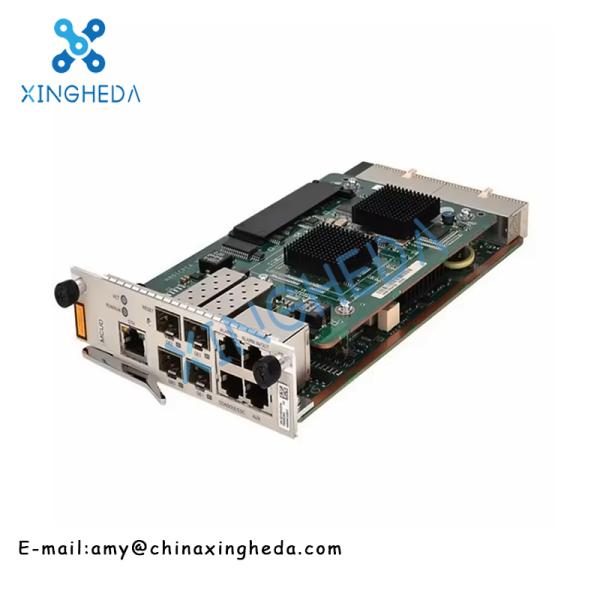

Huawei MCUD H801MCUD 03021RSV Huawei MA5608T 4-port GE Main Control Board

Brand Name : HUAWEI

Model Number : Huawei H801MCUD

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : Huawei H801MCUD 03021RSV

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

Huawei MCUD H801MCUD 03021RSV Huawei MA5608T 4-port GE main control board

Product Description:

MCUD is a main control card of Huawei OLT MA5608T, it provides system control and service switching and aggregation, integrates 4 GE upstream ports. Switching capacity 256G (active/standby mode) , MAX access 2048 subscribers. MCUD has one hardware version, H801MCUD.

Product Specifications:

Front panel
Specification
LAN switch 24 x GE + 4 x 10GE
Switching capacity 256 Gbit/s (active/standby mode)
512 Gbit/s (load sharing mode)
Bandwidth per slot 10 Gbit/s (active/standby mode)
20 Gbit/s (load sharing mode)
MAC address table 32768
Access user 2048
Multicast user 2048
Configurable multicast channel 4096
Concurrent multicast channel 2000
IPv4 routing table 5120
IPv6 routing table 5120
Service port 20480
ARP table 8192
ACL rule 896
Maximum Frame Size 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.
VRF (L3 VPN) Supported
Operating temperature -25°C to +65°C
Power consumption Static: 24 W
Maximum: 26 W
Mechanical Specification
Dimensions(mm) 233 (W) x 134 (D) x 34 (H)
Weight(kg) 1

Product Details:
Huawei MCUD H801MCUD 03021RSV Huawei MA5608T 4-port GE Main Control Board

Huawei MCUD H801MCUD 03021RSV Huawei MA5608T 4-port GE Main Control Board

If you are interested, please let us know the specific model. We will provide the best service and the best price!
Huawei MCUD H801MCUD 03021RSV Huawei MA5608T 4-port GE Main Control Board
Huawei MCUD H801MCUD 03021RSV Huawei MA5608T 4-port GE Main Control Board
Huawei MCUD H801MCUD 03021RSV Huawei MA5608T 4-port GE Main Control Board
Huawei MCUD H801MCUD 03021RSV Huawei MA5608T 4-port GE Main Control Board

Pr
